Dual Lane Vehicle Detector & Classifier

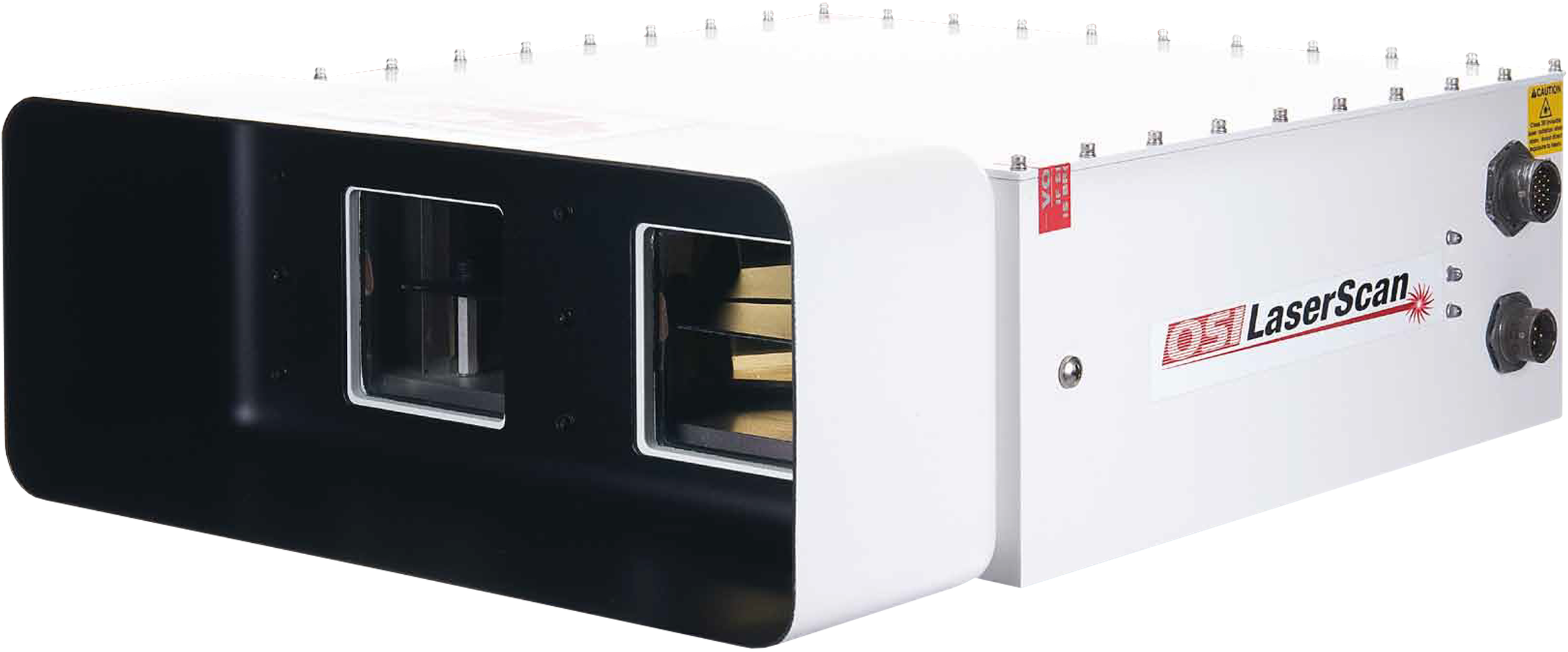

The AutoSense AS825 is available as AS-825-UDK-H, and AS825-EDK-H. The AS825 combines dual beams (i.e. two separate planes of detection) with an unsurpassed scanning rate of 360 scans per second per beam with angular resolution of 0.667 degrees and 60 degrees field of view. The classification parameters are fully configurable and can be defined in terms of vehicle length, vehicle height, vehicle width, profile and tow bar detection.

The AS825 is supplied in a Nitrogen-filled, hermetically sealed package, which ensures high reliability and long life time. The product is a Class-1 laser (Eye safe) and is equipped with window heater, which allows it to operate down to -40 degree C.

The AS825 communicates over RS-422 and can be set to communicate vehicle class and vehicle presence over a low speed serial interface or alternatively, range and intensity for every single pixel in real time over a high speed serial interface.


  • Vehicle Detection
  • Vehicle Classification
  • Camera triggering


  • High scan rate (360 scans per second per beam
  • 60 degree field of view
  • 0.667 degree angular resolution
  • 120V and 240V versions available
  • Dual beam design
  • Overlapping pixels, continuous field

Product Specifications


AS825-EDK-H (240V)

Use, MultiLane

Multi Lane - Open Road to achieve vehicle detection, separation, classification and camera trigger

Typical mounting location

Overhead: 7.6 m – 9.2 m

Field of View

60 degrees

Angular resolution

0.67 degree

Scan rate

360 scans per second per beam

Vehicle Classification Categories

11 standard, plus 20 user-definable categories

Vehicle Detection Accuracy

>99% (ORT)

Vehicle Classification Accuracy

>95% (into 6 vehicle classes)

Vehicle Speed Accuracy

± 10%

Vehicle Length Accuracy

± 10%

Vehicle Height Accuracy

± 12.7 mm Max


Power Input

200-264 V, 50-60 Hz, 1.0 A

Power Consumption

40 W nominal, 160W maximum

Dimensions (L x W x H)

406 x 343 x 127 mm


13.1 kg



19.2, 38.4, 57.6 Kbaud (User selectable), 8 data bits, 1 start, 1 stop, no parity


TCP/IP 10/100 Mbps


Temperature (with sun loading)

-40 to +70 ˚C

Thermal Shock

15.5 ˚C/minute


0 to 100% condensing


20 mm/hour operating, 100 mm/hour maximum

Snow Loading

98 kg/m²

Wind Loading

22 m/s steady, 37 m/s gusts

Reliability (MTBF)

>35,000 hours


15 minutes (Mean Time to Replace)

AS825-EDK-H Accessories

  • Surge Suppressor
    Part No. 81000143-9
  • Mounting Kit
    Part No. 19471022-9
  • Power Cable
    Part No. 9291011-9-XYZ
  • Communications Cable
    Part No. 9291009-9-XYZ
  • Power Connector
    Part No. PW06P12-3S
  • Communications Connector
    Part No. PT06P14-19S
